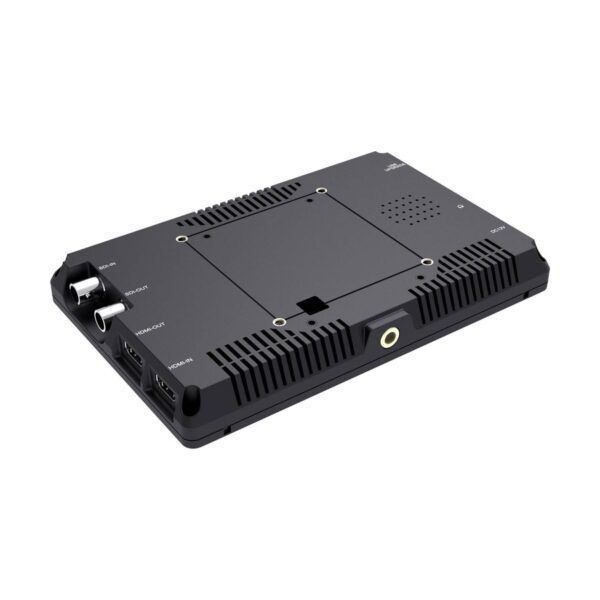

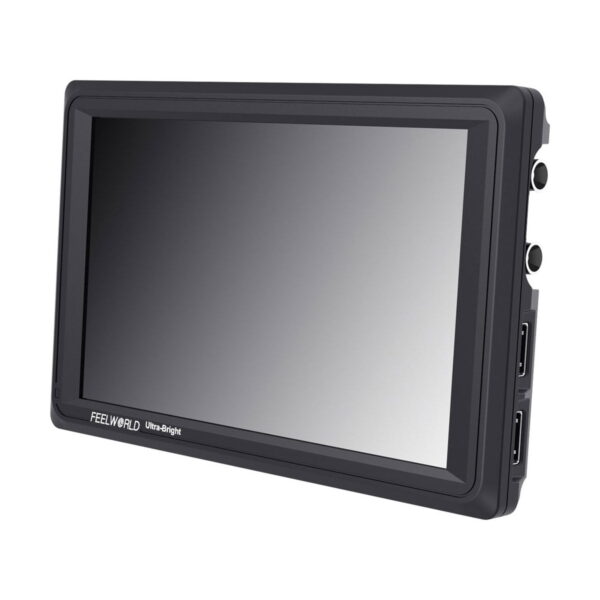

Feelworld FW279S 7″

Tärkeimmät ominaisuudet

• Korkea FullHD resoluution
• HDMI 4K + 3G SDI
• Todella kirkas ja kontrastinen kuva  – 2200 cd/m² & 1200:1
• Sisäänrakennettu histogrammi, focus peaking, zebra, false color ja nine-grid
• Anamorphinen squeeze
• 160 asteen katselukulma
• Toimii F970 akuilla tai 12v DC tasavirralla

Tekniset tiedot

• Panel Type IPS-Type LCD
• Display Size 7.0″ / 17.8 cm
• Screen Resolution 1920 x 1200
• Aspect Ratio 16:10
• Viewing Angle Horizontal: 160° (80/80)
• Vertical: 160° (80/80)
• Maximum Brightness 2200 cd/m2
• Contrast Ratio 1200:1
• Pixels Per Inch (ppi) 323 ppi

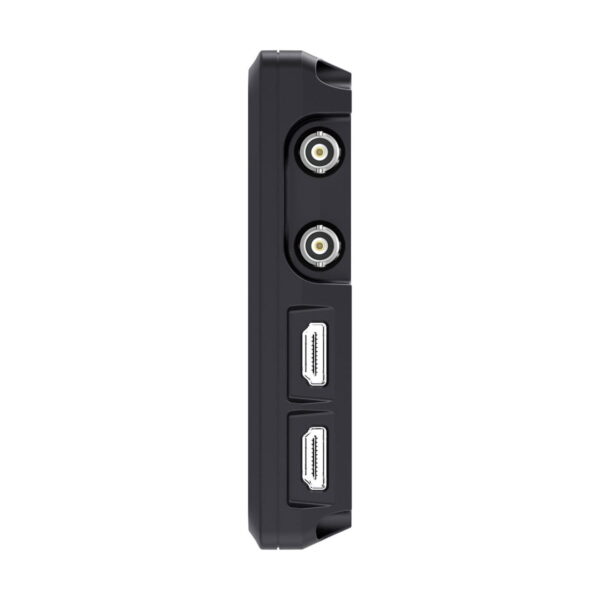

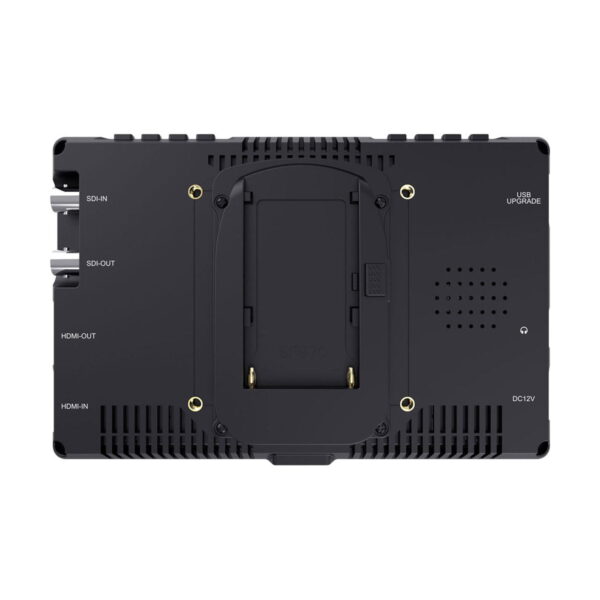

• I/O
  • Video 1 x HDMI Type A (HDMI 1.4) Input
  • 1 x HDMI Type A (HDMI 1.4) Output
  • 1 x BNC (3G-SDI) Input
  • 1 x BNC (3G-SDI) Output
  • Audio 1 x 3.5 mm Headphone Output
• Video Format HDMI
  • DCI 4K: 24
  • UHD 4K: 30/29.97/25/24/23.98
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080PsF: 24/23.98
  • 1080i: 60/59.94/50
  • 720p: 60/59.94/50/30/29.97/25/24/23.98
  • 576p: 25
  • 480p: 29.97
  • 576i: 50
  • 480i: 59.94
• SDI
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080PsF: 24/23.98
  • 1080i: 60/59.94/50
  • 576i: 50
  • 480i: 59.94
• Power
  • DC Input Power 7 to 24 VDC at 2 A
  • Battery Type 1 x L-Series (Interchangeable Mount)
  • Power Consumption 18 W
• Mounting
• Mounting-Hole Pattern 75 x 75 mm
• Mounting 1 x 1/4″-20 Female
• Dimensions  180 x 120 x 25 mm
• Weight  395 g
