Eizo 27″ ColorEdge CS2740 ColorNavigator

Eizo 27″ ColorEdge CS2740 ColorNavigator

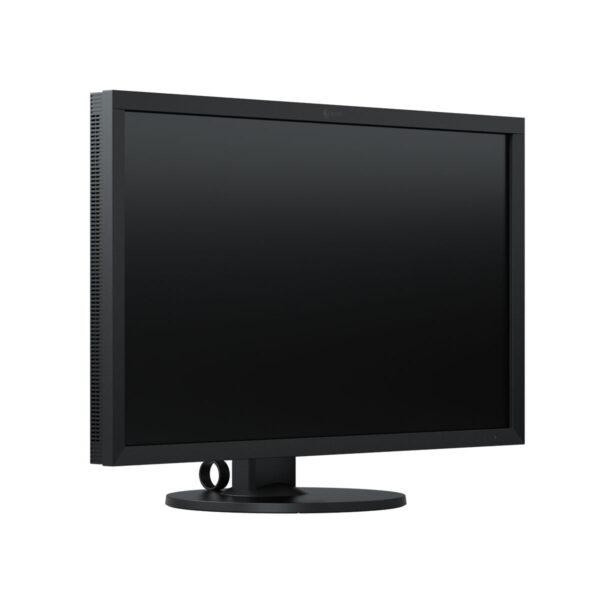

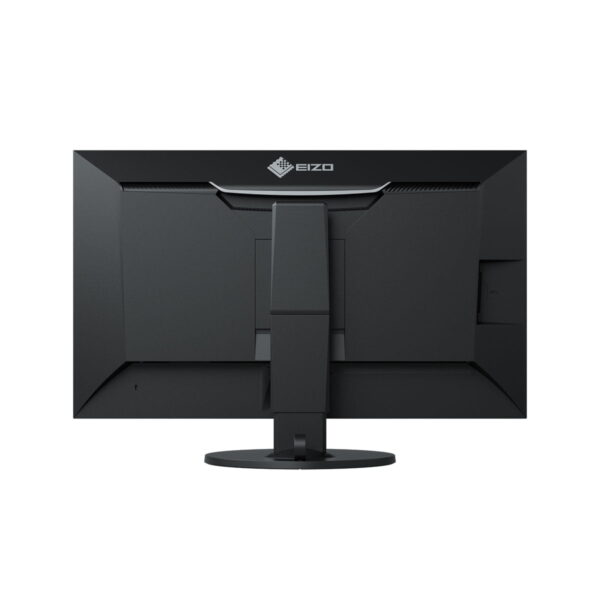

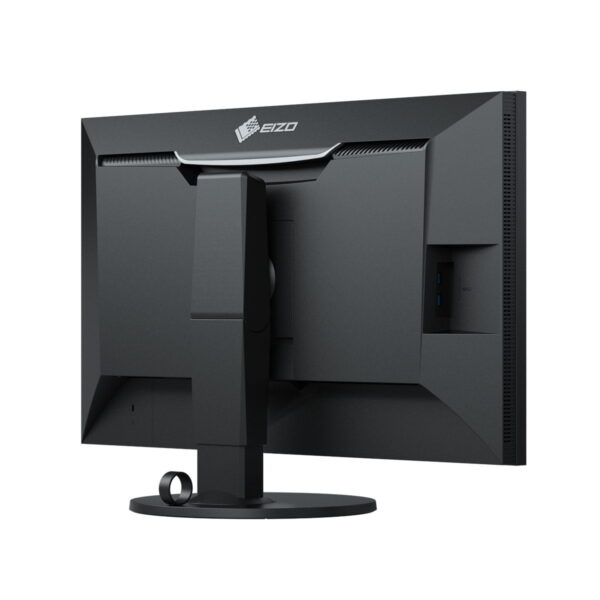

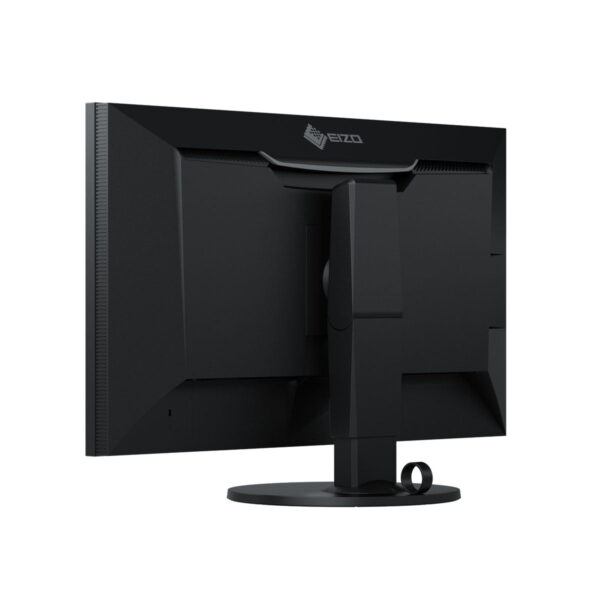

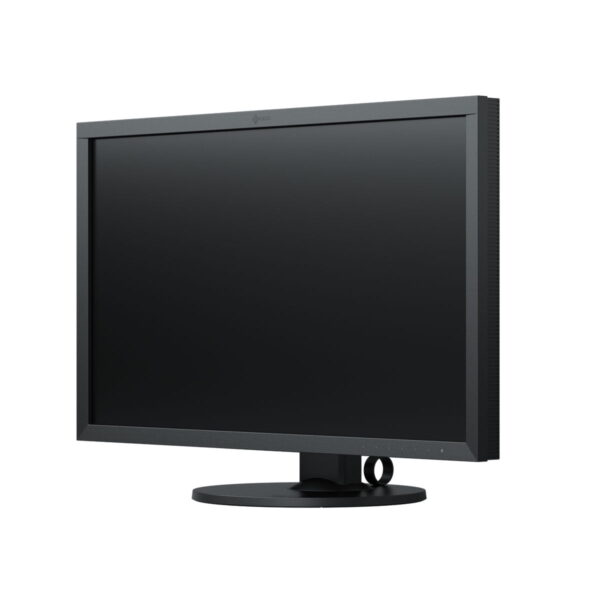

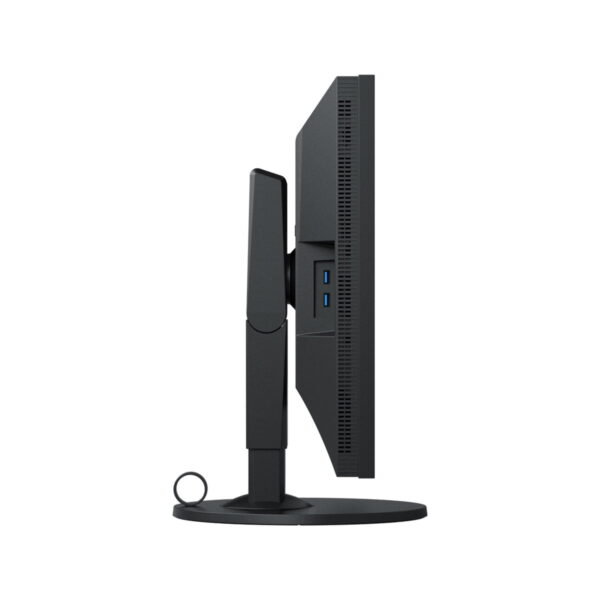

The ultimate professional monitor with all the goodies. The Eizo 27" ColorEdge CS2740CAL delivers accurate 4K 3840 x 2160 resolution (164 ppi), beautiful 10-bit colour fidelity and a high contrast, bright image. The monitor comes directly from the factory individually calibrated and you can calibrate it with the Eizo EX4 sensor (sold separately) in up to 90 seconds.. This means that the monitor will retain perfect colours throughout its lifetime. The monitor is perfect for any photographer or videographer who appreciates the best possible colour reproduction and image quality.

No calibration tool is included, if you want to calibrate the monitor regularly, we recommend Eizo 27″ ColorEdge CS2740CAL ColorNavigator Template from

USB-C connection

A large proportion of professionals are using more and more laptops and the new ports allow them to use them particularly effectively. The Eizo CS2740 supports the 3.1 standard, allowing up to 5gb/s data transfers and 60 watts of charging. So one cable does everything you need, you can connect your Macbook to the display and get both charging and display signal transmission from the same cable. The cable also turns your display into a USB hub where you can plug in your keyboard, mouse and other accessories. Docking stations are history!

Main features

• 3840 x 2160 UHD 4K IPS panel
• 99% Adobe RGB
• 1000:1 contrast and 350 cd/m2 brightness
• USB-C, DP and HDMI connections
• USB hub ( 2 x USB 3.1 and 2x USB 2.0 )
• Eizo Colornavigator calibration software
• Handle for easy transfer

Technical specifications

• Diagonal inch size 26.9″
• Size 596.2 x 335.3 mm
• Panel IPS-Type LCD
• Resolution 3840 x 2160
• Aspect ratio 16:9
• Pixels Per Inch (ppi) 164 ppi
• Non-reflective glossy surface
• Maximum brightness 350 cd/m2
• Contrast ratio 1000:1
• Pixel Clock Frequency 600 MHz
• Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
• Look-Up Table 16-bit
• Color Gamut 99% Adobe RGB
• 103% NTSC
• Response time 10 ms (GtG)
• Viewing angle 178 x 178°
• Dot Pitch 0.155 x 0.155 mm
• 1 x DisplayPort input
• 1 x HDMI input
• 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 1) Input/Output
• 1 x USB Type-B (USB 3.1 / USB 3.2 Gen 1) input
• 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) output
• 2 x USB Type-A (USB 2.0) output
• HDCP Support Yes, Version 2.2
• Power consumption 168 W (Maximum)
• Power consumption 36 W (Average)
• Power consumption 1.0 W (Power saving)
• AC Input Power 100 to 240 VAC, 50 / 60 Hz at 1.7 to 0.75 A
• USB power 60 W (USB Type-C)
• Certificates CB, CE, EAC, PSE, RCM, RoHS, TUV, TUV/Ergonomics, TUV/S, WEEE, cTUVus, as per Manufacturer
• Height Adjustment 6.10″ / 155 mm
• Rotation Adjustment 90° (0 to 90°)
• Swivel Adjustment 344° (-172 to 172°)
• Tilt Adjustment -5 to 35°
• VESA mounting 100 x 100 mm
• Size 638.0 x 570.0 x 269.1 mm (with foot)
• Size 638.0 x 378.2 x 75.0 mm (without foot)
• Weight 10.3 kg (with leg)
• Weight 6.7 kg (without foot)
