Panasonic DMW-XLR2 Microphone adapter

Panasonic DMW-XLR2 Microphone adapter

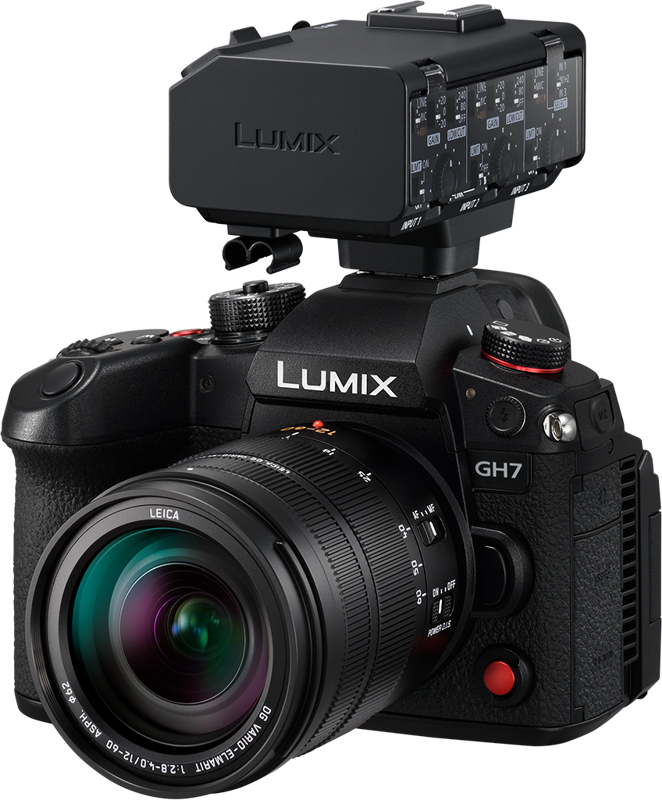

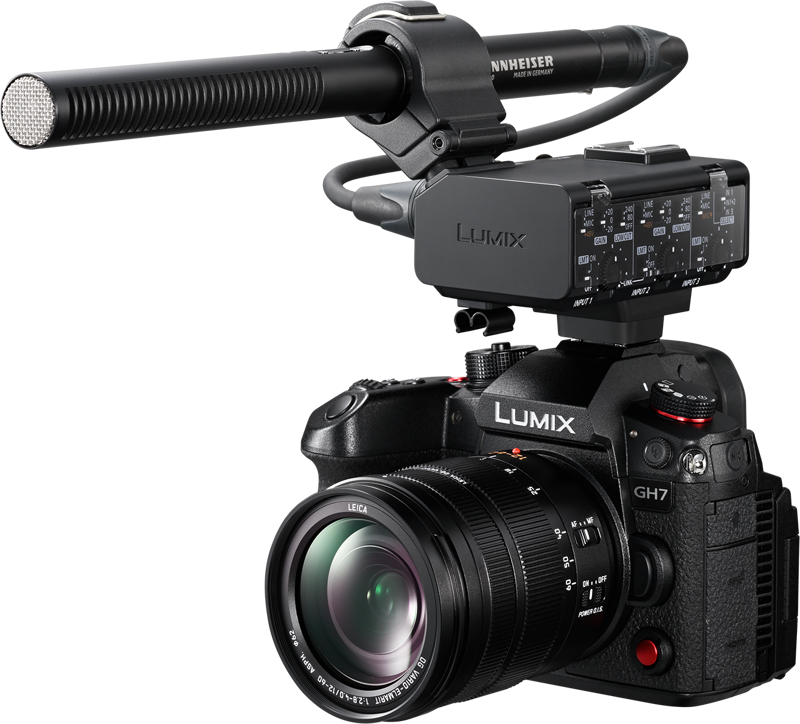

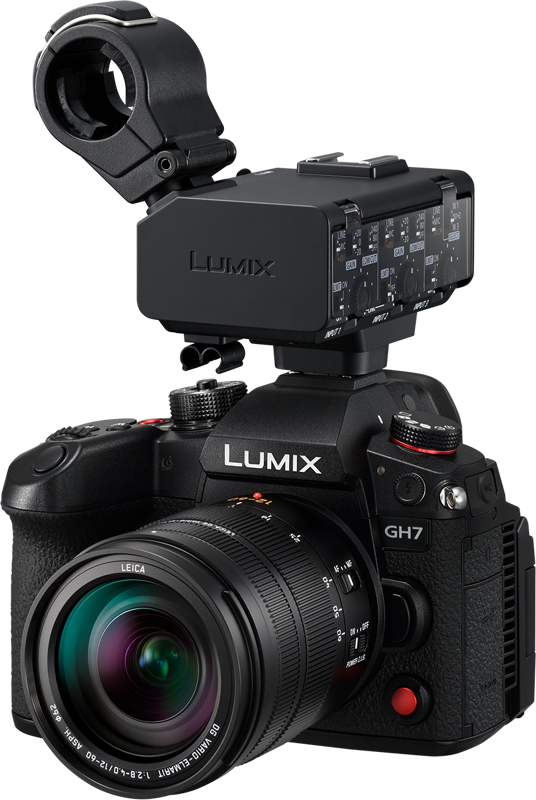

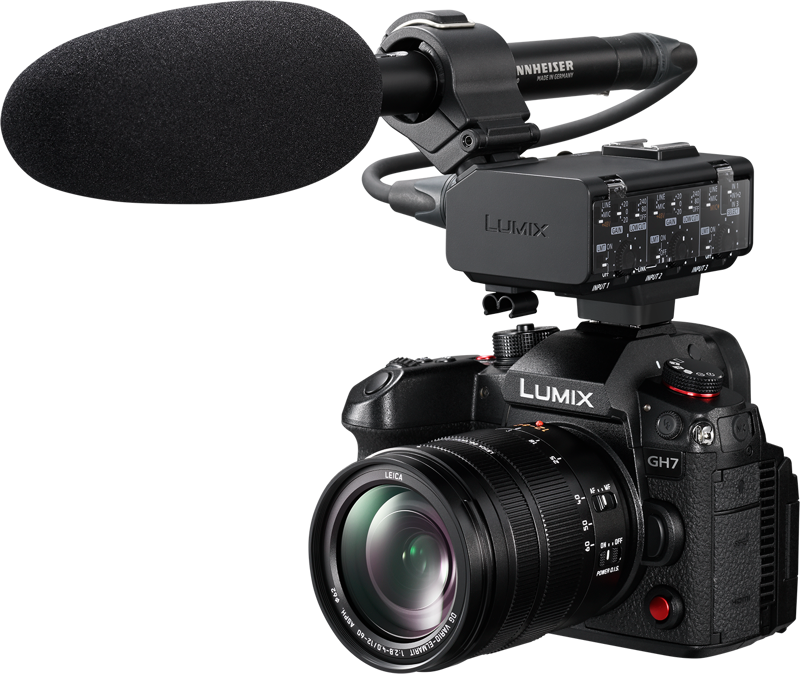

Expand Lumix GH7 the sound capabilities of the camera with this flash mount Panasonic DMW-XLR2 mwith a microphone adapter. The camera powers the adapter directly from the flash shoe and provides two XLR inputs for professional microphones. The adapter also features a 3.5 mm stereo audio input for alternative microphone options.

The unit has a control panel that provides numerous physical knobs and controls to adjust each input level, gain and low-pass filter separately. It also supports high-resolution recording formats up to 96 kHz and 24-bit, and provides 48V phantom power to either both XLR inputs or the 3.5mm input. A cable clip is included for cable management, and a lightning shoe on top of the unit supports accessories.

Technical specifications

• Entry level:
  • XLR: 0 dBu (line), +48 V: -40 dBu (mic)
  • 3.5 mm: -10 dBv (line), -40 dBv (mic, plug-in power)
• Phatom power: 48 V (XLR) and 2.5 V (3.5 mm)
• Input level: -12 dBFS
• Frequency: 20 Hz - 40 kHz
• Sampling rate: 48 kHz, 24-bit (linear) and 96 kHz, 24 bit (float)
• Inputs: 2x XLR 3-pin and 1x 3.5 mm mic jack
• Dimensions: 106.2 x 94.6 x 92 mm
• Weight: 192 g
