SmallRig 4608 V-Mount Battery Mini VB99 SE

SmallRig 4608 V-Mount Battery Mini VB99 SE

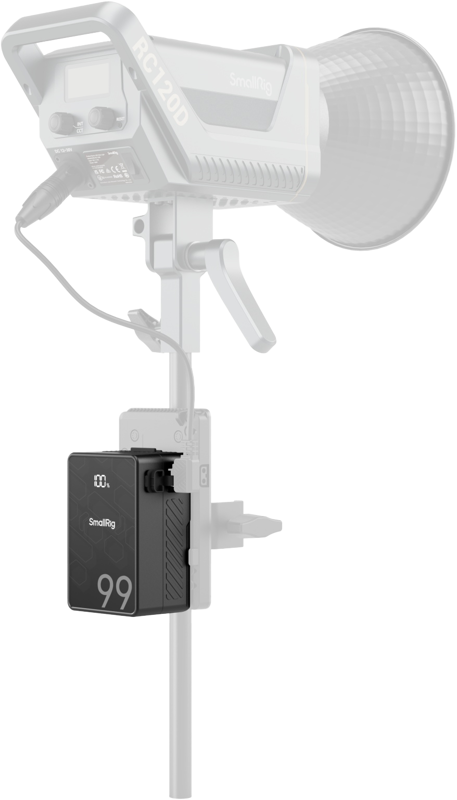

The SmallRig 4608 is a compact V-mount battery designed specifically with mobility in mind. Its extremely integrated design significantly reduces the size of the battery, making it lightweight and easy to carry. The battery utilises LG's Class A 18650 cells, which ensure precise capacity and exceptional stability.

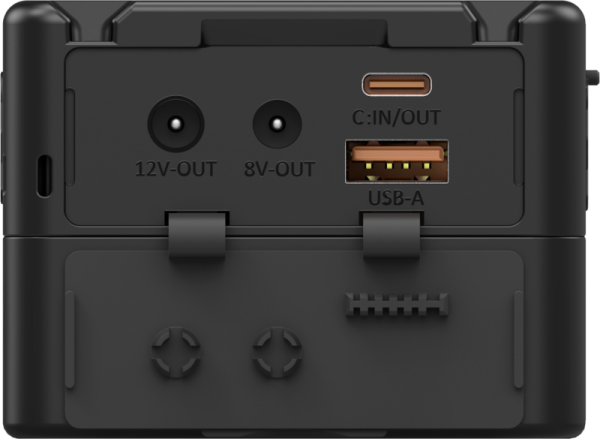

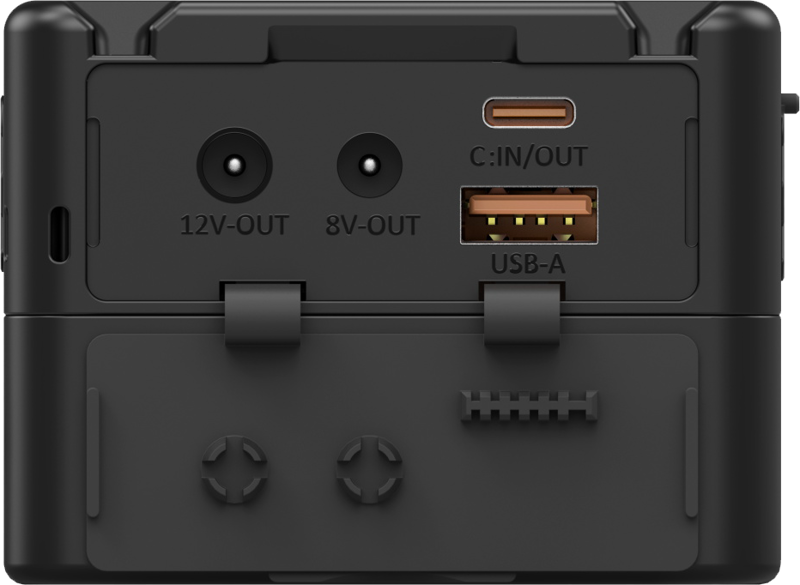

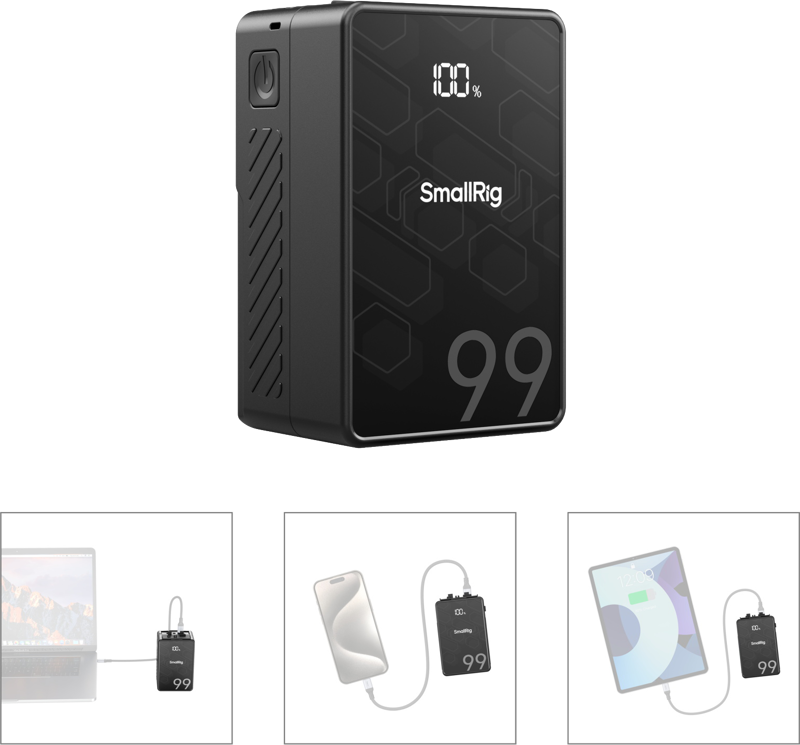

The battery with versatile connections allows you to power multiple devices at the same time. BP, D-Tap, 8V-OUT DC, 12V-OUT DC, USB-C and USB-A ports offer a wide range of connection options, so you can charge everything from cameras to tablets and laptops.

The SmallRig 4608 includes a fast charge protocol chip, MCU, boost/buck control chip and battery management system (BMS), which provide a range of protections such as overcurrent, short-circuit, over-temperature and over-voltage protection, ensuring safe battery operation.

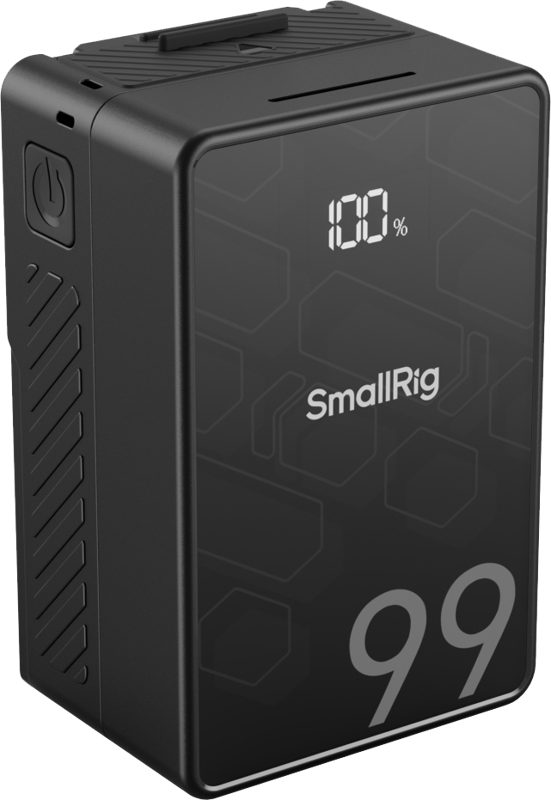

The outside of the battery is made of fire-resistant PC material, which ensures its durability and longevity. The OLED display clearly shows the battery charge level and other important information, so you can quickly and easily monitor the battery status.

The SmallRig 4608 is certified to a number of international standards, ensuring its safety and reliability.

Technical specifications

• Capacity: 14.54V 6.8Ah 99Wh
• Rated power: discharge 100W, charge 65W
• V-input / D-TAP input: 6.8A (Max.)
• V-installation / D-TAP output: 14.8V / 10A (Max)
• USB-A output: 5V=3A, 9V=3A, 12V=2.5A (Max)
• USB-C input/output: max. Max. input 65W / output: 5V=3A, 9V=3A, 12V=3A, 15V=3A, 20V=3.25A (Max.)
• DC1 output: 8V / Max3A
• DC2 output: 12V / Max3A
• Optional charging method: 16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging technology (up to 65W).
