SmallRig 5537 Adapter Plate Kit for NP-F Type Batteries

SmallRig 5537 Adapter Plate Kit for NP-F Type Batteries for 15mm LWS Rods

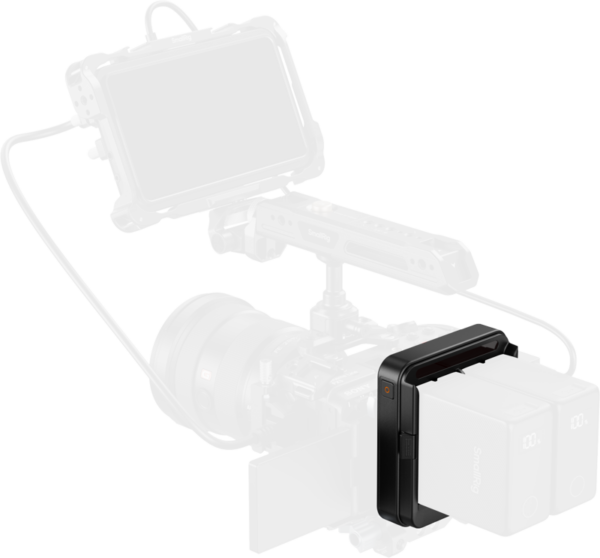

The SmallRig 5537 adapter plate kit is designed to provide continuous power for mirrorless cameras, monitors and other devices that use NP-F series batteries. The plate holds one or two NP-F batteries and can be attached with a V-mounting plate, a 15mm double arm mount or a 1/4″-20 thread on the bottom.

The dual-battery hot-swap feature allows a single battery to be replaced without turning off the connected equipment (UPS), which helps to keep the power supply uninterrupted. Multiple output ports (D-Tap, DC and USB-C) support simultaneous use of multiple devices, and the USB-C input supports up to 36W of input power, allowing the board to also act as a charging station.

Main features

• Adapter plate for one or two NP-F batteries for continuous power supply
• Hot-swap / UPS with two batteries: replace one battery without disconnecting the power

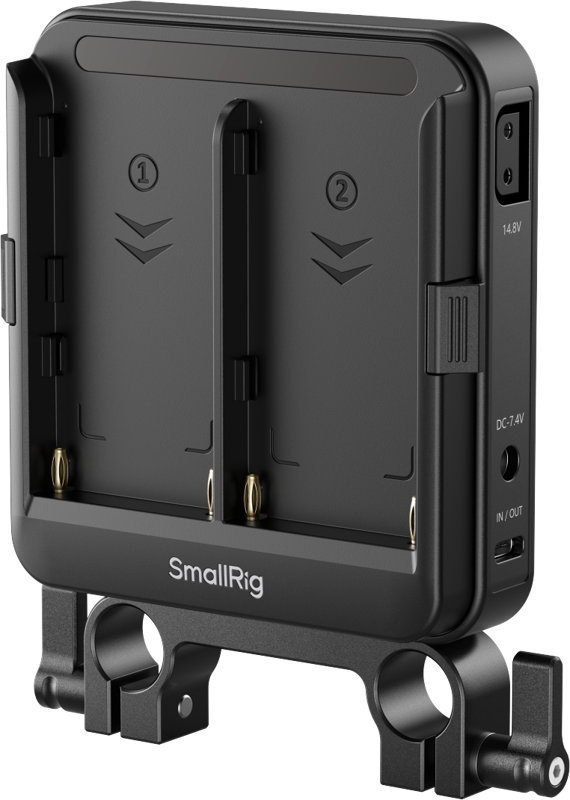

• Multiple output ports: D-Tap, DC and USB-C - for multiple devices simultaneously
• USB-C input up to 36 W: also works as a charging station
• Intelligent control circuit optimises unloading and loading
• Independent power switch: status check and output disconnection with a long press (2 s)
• Separate LED indicator lights for channels for clear battery status monitoring

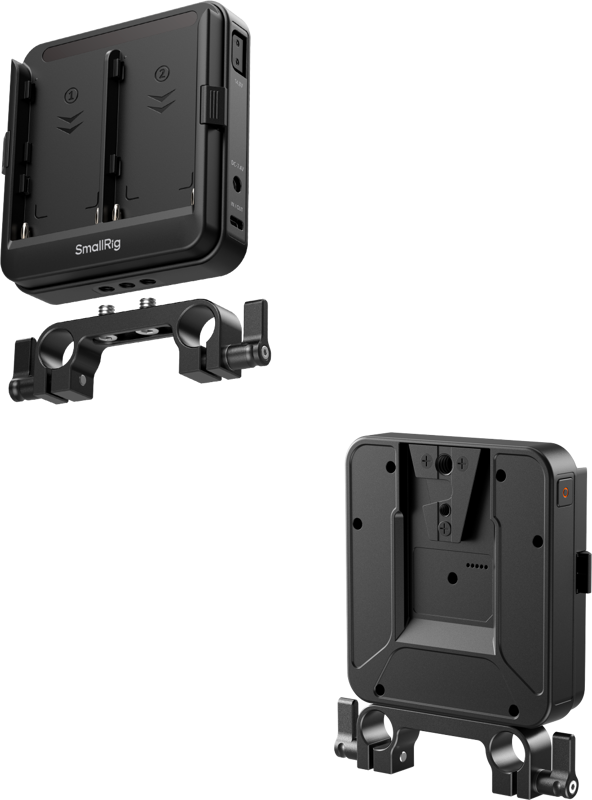

• Mounting options: V-mount, 15 mm double arm bracket or 1/4″-20 thread on base

Compatibility

• NP-F550 / NP-F570 / NP-F750 / NP-F770 / NP-F950 / NP-F970
• Accessories with V-connector or 1/4″-20 screw
• 15 mm double stems with a centre distance of 60 mm
