Tilta Nucleus-Nano Wireless Focus Control System

Tilta Nucleus-Nano Wireless Focus Control System - an epic wireless follow focus solution

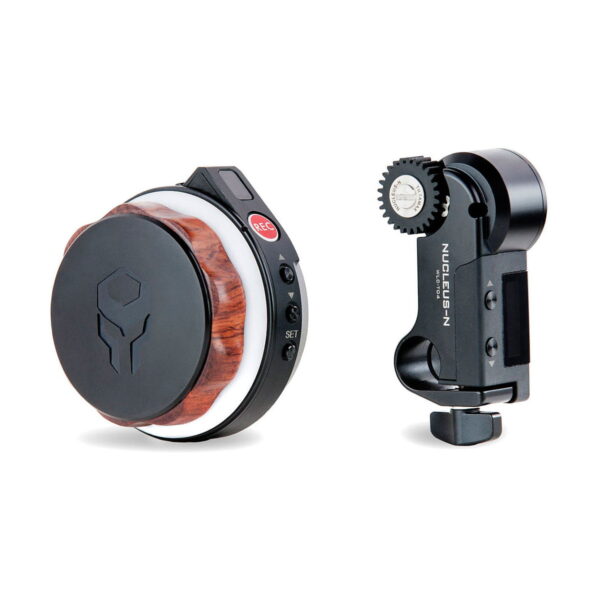

A truly high-quality wireless follow focus from Tilta, the Tilta Nucleus-Nano Wireless Focus Control System is a professional tool for adjusting focus from a little further away. At the heart of the system is a focus control motor and a focus handwheel. The units can be connected up to 90 metres away and there is a wide range of mounting options.

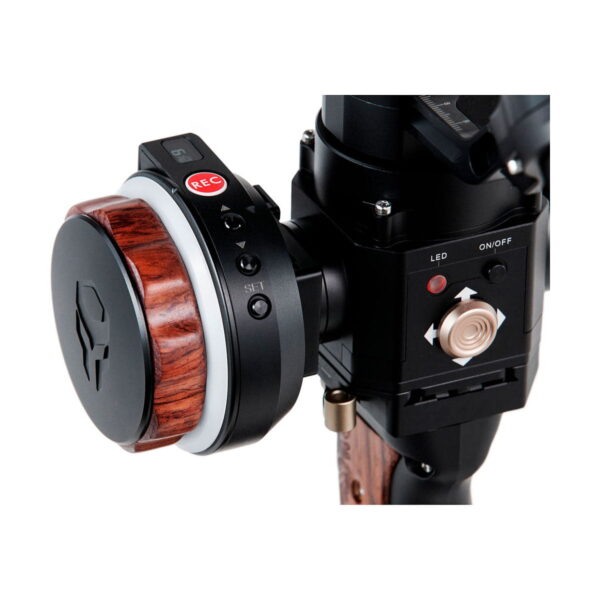

The units have run/stop functions and hard A/B limits. Control is easy and precise. The handwheel is powered by a 14500 lithium battery and motor power comes from any USB source via a micro-USB connection. Both units are made of durable parts. The handwheel has a beautiful rosewood grip with a comfortable feel.

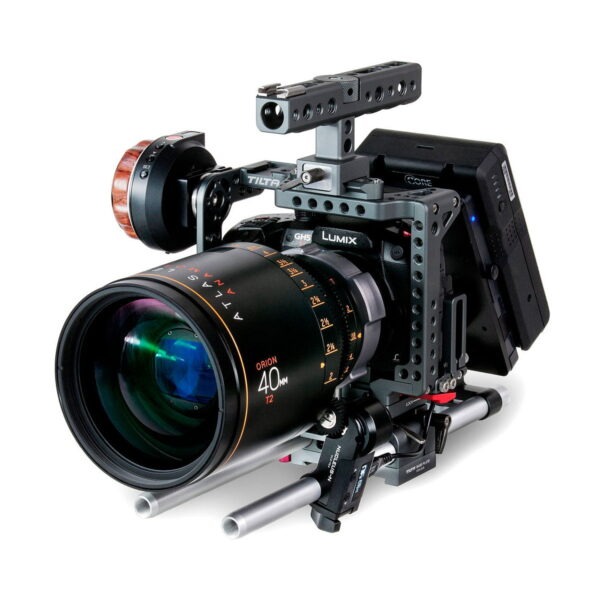

The kit comes with in addition to the handwheel and motor, a mounting plate for the 95mm lens, 15mm rod, micro-USB motor cable, DJi Ronin-s motor cable, 0.8 MOD motor gear, two lens gear rings, mounting plates for Ronin-S/G2 and Zhiyun Crane, double batteries, charger, two batteries, mounting screws, soft case and two Allen keys.

Large handwheel responds without delay up to 90 metres over 2.4 GHz Wi-Fi and the 3.7V 14500 Li-ion battery lasts up to 6 hours. You can also do run/stop functions and set strict A and B limits with buttons on the bike's frame. The frame of the bike is aluminium, plastic and rubber in other parts and the handlebar itself is gorgeous rosewood. You can attach the python to a tripod, rigging, gimbals and the like with a rosette clamp.

Engine is equipped with 0.8 MOD cine lens teeth and has a torque of 1Nm and connects wirelessly to the Nucleu-Nano Focus Hand Wheel with ease. The motor is also compatible with the Nucleus-M FIZ hand tuner. The motor is powered (5-18V) via the USB-C port or from the D-Tap battery via a separately purchased cable. The motor body is made of aluminium and stainless steel. Attachment is to a tripod, rig or gimbal with a 15mm integral screw clamp.

Key information

• Wireless focus system
• Large rosewood steering wheel
• Wireless range up to 90 metres
• powered by 14500 lithium batteries
• start/stop functions and A/B stops
• the engine is quiet
• 5-18V motor with 0,65-1 Nm torque
• 15mm LWS Length of rod: 10cm
