Viltrox DC-A1 7″ Super Bright Monitor

Viltrox DC-A1 7″ Super Bright Monitor

A powerful and easy-to-use solution for all your imaging needs

The Viltrox DC-A1 7” Super Bright Monitor is a 7-inch super bright HD touchscreen designed to meet the demands of professional photographers and filmmakers. Its impressive 2800-nit brightness ensures excellent visibility even in bright lighting conditions. The display offers advanced tools such as focus peaking, zebra patterns and more, for improved accuracy and efficiency in shooting situations. The DC-A1 also supports the import of custom LUT profiles, ensuring colour consistency from capture to post-processing.

Features

• 2800 nit ultra-bright display
• HD colour display with bright colours
• 4K signal transmission: supports 4K 60Hz input and output
• Efficient and quiet active cooling, protective hood with quick-release fastening

2800 Nits Ultra Bright display - a new definition of brightness
The DC-A1 features an upgraded 2800-nit bright screen, ensuring visibility in sunshine and challenging lighting conditions. The bright and true-to-life image allows for precise observation and takes photography to a new level.

Professional-grade monitoring tools
A wide range of advanced features provides versatile and accurate control:

3D LUT support
See different colour styles in real time and ensure colour consistency. Supports extensive log monitoring and allows you to import your own LUT files via the USB-A interface.

Focus Peaking (Focus Peaking)
Improves manual focusing - faster and more accurate focusing.

Zebra patterns
Easily highlights areas of specific brightness, helping to control exposure.

Image magnification
Zoom (pinch) function for a close look at details.

Waveform (Waveform)
Precise control of tone range and colour balance.

Anamorphic lens compression (De-squeeze)
You can see the effects of the anamorphic lens correctly, without the need for further adjustment.

Easy to use with one hand
An intuitive touchscreen and clear user interface allow quick and accurate adjustments with a single touch.

Excellent screen: bright and detailed from every angle
7-inch Full HD (1920×1080) IPS display

• 170° viewing angle without colour changes
• Apple colour calibration for natural and vivid colour reproduction
• Contrast ratio: 1000:1
• Colour scheme: sRGB
• Colour depth: 8-bit
• Update frequency: 60Hz
• 4K broadcast, a smooth viewing experience
  The DC-A1 supports 4K/60Hz without any loss of quality - an excellent choice for professional production.

Intelligent heat management
A silent fan and built-in temperature sensor automatically adjust cooling, ensuring stable operation even during long shooting sessions.

Removable protective hood against bright light
The quick-release hood protects the screen in bright light and prevents reflections. Easy to install and remove - saves space and extends the life of your device.

Versatile power supply options
Suitable for long shoots without interruptions.

• NP-F series batteries (e.g. NP-F550, F750, F970)
• DC IN (10-18V)
• USB Type-C (9V/12V/15V/20V, max 3A)

Perfect size, easy to carry
Compact and lightweight, ideal for outdoor photography and mobile situations.
Dimensions: 188 × 110 × 28 mm
Weight: only 348 g

Durable and reliable
Tested to withstand demanding conditions. Comes with a protective film to protect the screen from scratches.

Multiple mounting options (1/4” horizontal and vertical + ARRI holes)

Technical specifications

• Display: 7” IPS touchscreen
• Resolution: 1920 × 1080
• Aspect ratio: 16:9
• Contrast: 1000:1
• Update speed: 60Hz
• Brightness: 2800 cd/m²
• Viewing angle: 170º
• Pixel density: 316 PPI
• Colour depth: 8-bit
• Colour space: sRGB

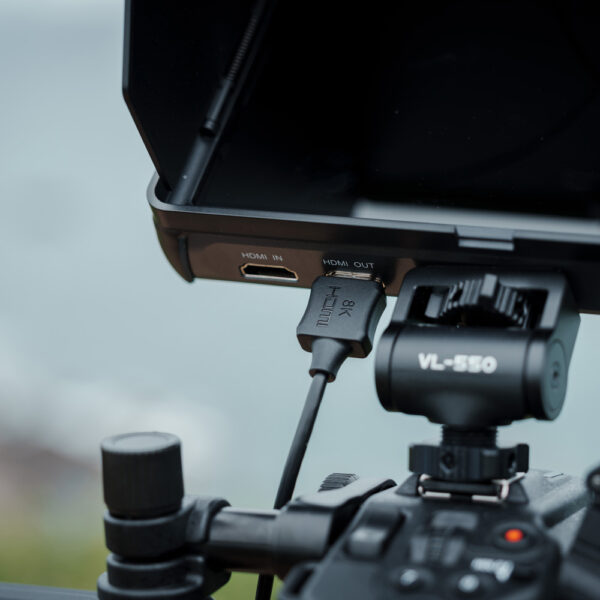

• Input: HDMI 2.0 IN
• Output: HDMI 2.0 OUT
• Cooling: yes (with fan)
• Weight: 348 g
• Dimensions: 187.8 × 110.5 × 28.5 mm
• USB: Supports USB updates and 3D LUT files
• Audio output: 3.5 mm headphone jack
• Power supplies: DC 10V-18V, USB-C >9V (up to 20V/3A)
• Compatible battery: NP-F550/F750/F970
• Operating temperature: 0 ºC - 40 ºC
• Storage temperature: -20 ºC - 60 ºC
